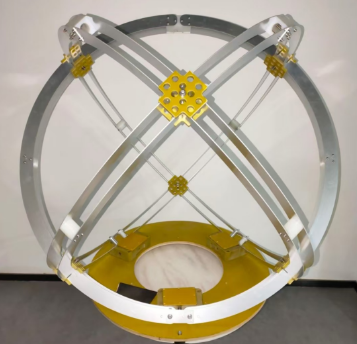

The antenna consists of three orthogonal loops combined together. Each loop of the antenna is designed with an amplifier to work in coordination. The antenna can be used for precise direction finding, vector analysis of electromagnetic signals, and polarization studies in various scientific and communication applications.
Electrical Specifications | |||
---|---|---|---|
Frequency Range | 3-30MHz | Polarisation | Three-axis Orthogonal Polarisation |
Radiation Pattern | Omnidirectional | Orthogonal Isolation | ≧20dB |
Impedance | 50Ω | Consistency | ≦ ±1.5 |
Mechanical Specifications | |||
Dimensions | Sφ1200mm | Color | Matt olive green (GY06) |
Connector | SMA-K | Weight | ≦35Kg |
